Conductor Aerospace 4.0mm Copper Wire Twisting Cable Stranding Machine

Name: Conductor Aerospace 40mm Copper Wire Twisting Cable Stranding Machine
Brand: Herrman
Price: 1 USD

Brand Name : Herrman

Model Number : 500,630,800,1250,1600

Certification : SGS, CQC, CE, ISO

Place of Origin : China

MOQ : 1 Line

Price : By Negotiation

Payment Terms : OA, D/P, T/T, L/C, D/A

Supply Ability : 50 Sets Per Year

Delivery Time : 2 months

Packaging Details : Plastic Films packing

Usage : Stranding

Final Product : Conductor

Rotating Speed : 800r/min

Bobbin Size : 500,630,800

Single Wire Diameter : 1.0~4.0mm

Motor Power : 37KW

Contact Now

High Speed Skip Stranding Machine / Copper Wire Twisting Machine by independent AC motor

1. Application

The machine is used for stranding copper, aluminum wire and steel wires.

2. Structure

The machine works speedily with the stranding bow of high rotation speed. Both ends of the stranding bow are connected to the rotary arm. For this reason, the natural formation can be ensured when the bow rotates in a high speed.

3. Main Specification

Model	Bobbin Quantity	Max. Wire Dia.	Stranding Dia.	Take-up	Center Height
500/1+6	1+6	5	16-20	1600	710
630/1+6	1+6	5	16-20	1600	710
800/1+6	1+6	5	16-20	2000	800

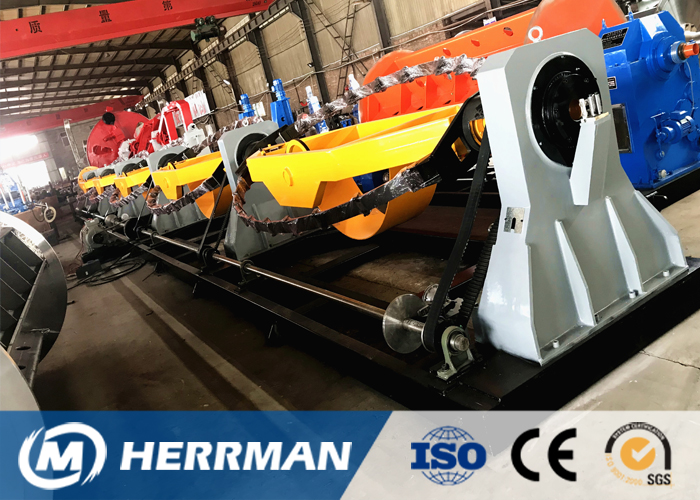

4. Photo

Conductor Aerospace 4.0mm Copper Wire Twisting Cable Stranding Machine
